Portable videoscope
Model Number:
Place of Origin:
Added:2022-10-13
Views:
Telephone:86-0371-55693095
Keywords:Portable videoscope,Portable videoscope sales,Portable videoscope manufacturers,Portable videoscope wholesale
Next Previous

Product Details

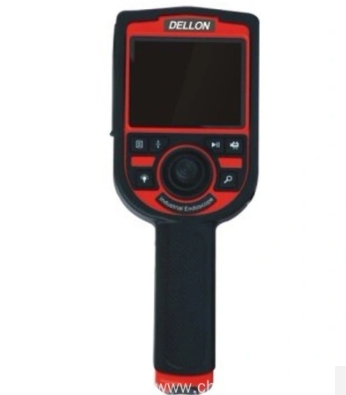

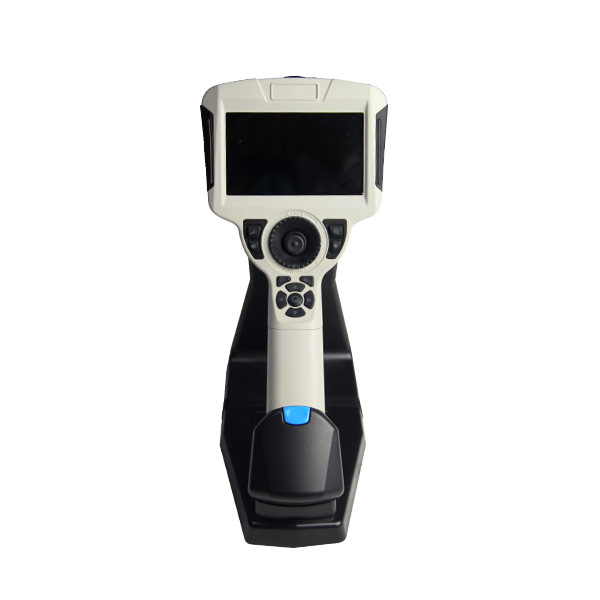

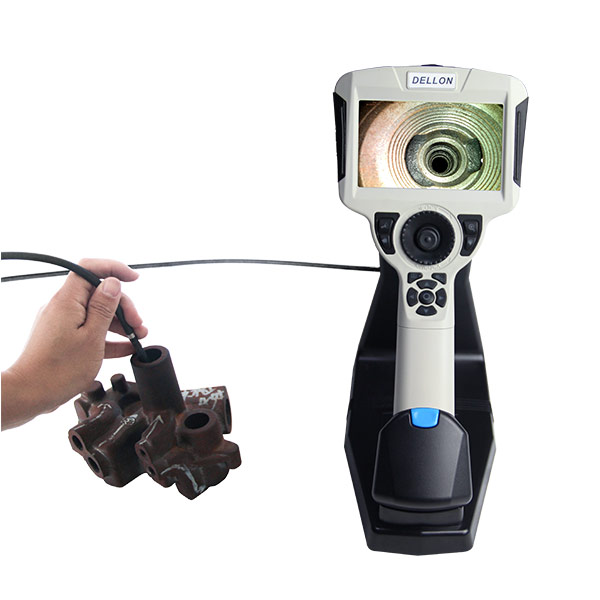

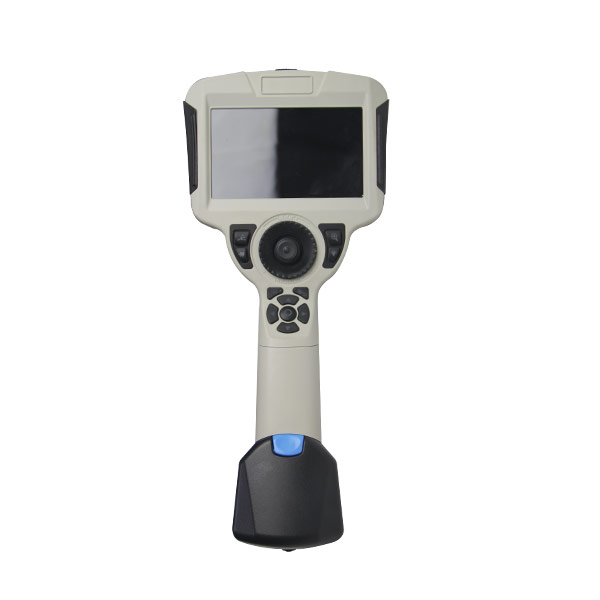

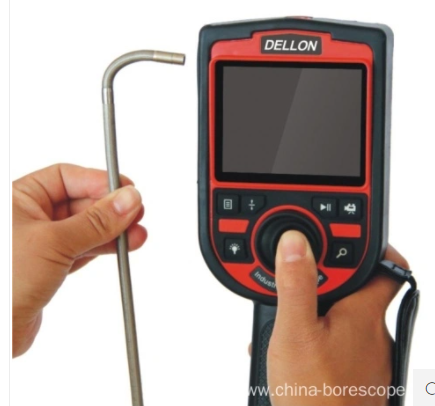

Portable Videoscope.

Model:G4150/ G4300 All Way Articulating4.5mm Portable Videoscope

Portable videoscope Features:

Portable design,easy using and carrying

Joystick-Controlled,360 degreeArticulation.

Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.

High sensitiveness CCD/CMOS image sensor.AA batteries,continually working more than 2 hours.

Portable videoscope Specification

Operating Unit:
Display:3.5 inches TFT LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:AA Batteries or AC Adapter

Working Time:More than 2 hours

Probe:
Probe Diameter:4.5 mm
Camera Pixel:350,000
Articulation:360 degree all-way
Tube Length:1.5m-3m

Material of Tube:Stainless steel
Depth of Field:8mm-80mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:6 pcs white light LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:8GSD card
Waterproof Level:IP65
Portable videoscope weight:590g

Working temperature:-10℃-50℃

Dimensions:470*360*150(mm)
