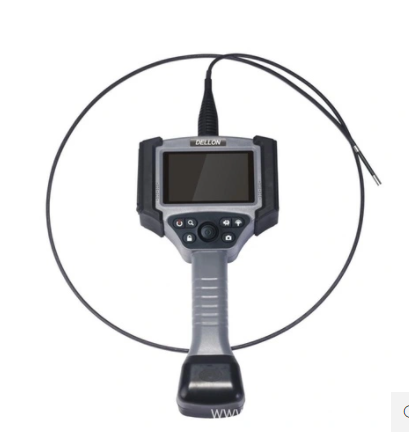

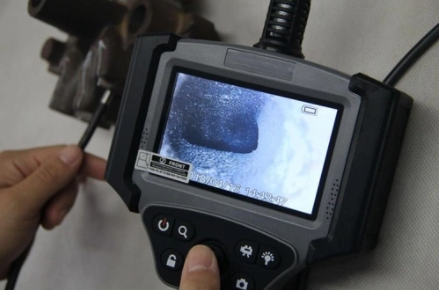

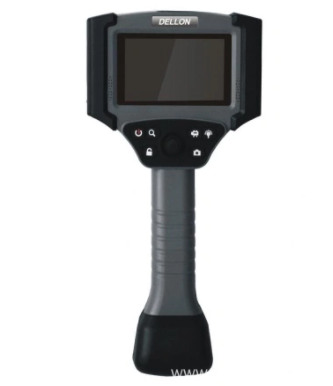

6mm Camera Portable Videoscope.

This 6mm camera Portable Videoscope has 2 models,depth of Field:15mm-infinity,and the bending part is constituted by precision and flexible material,4-way articulation with more than 90 degrees bending angle.This portable Videoscope can be used in automobile,industrial machinery,electronics,petrochemical,aviation,marine,building and others industrial fields.

6mm camera portable videoscope Features:

Replaceable lithium battery,to keep the system working for long time.

Tungsten braid cable,corrosion resistance.

Electrical Joystick-Controlled,360 ° Articulation.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

A carrying belt making it easier for you to bring the system up to a high position.

6mm camera portable videoscope Specification

Operating Unit:
Display:4.3 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:5V Lithium battery or AC Adapter

Working Time:≥4 hours

Probe:
Probe Diameter:6.2mm

Camera Pixel:700,000
Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/ IP67(Optional)
System weight:900g

Dimensions:570*180*470(mm)
