Engine inspection camera
Model Number:
Place of Origin:
Keywords:Engine inspection camera,Engine inspection camera sales,Engine inspection camera wholesale
Next Previous

Product Details

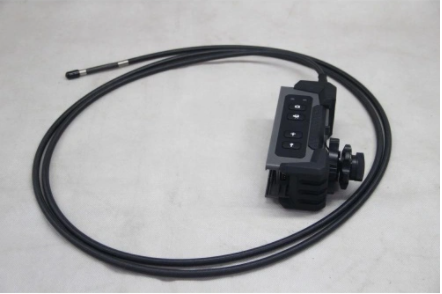

Engine Inspection Camera.

For the automobile in the relevant mechanical casting process,the Inspection Camera can be in the auto parts casting,hydraulic casting,mechanical parts casting process,you can check and monitor the situation of casting Gaza,burrs and staggered holes.Through its accurate detection,the device can work properly.Engine inspection camera is one of the inspection tools,followings are the details of this inspection camera,for other questions you can contact us directly.

Engine inspection camera Features:

High resolution camera,360 ° Articulation.

Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance

Engine inspection camera Specification

Operating Unit

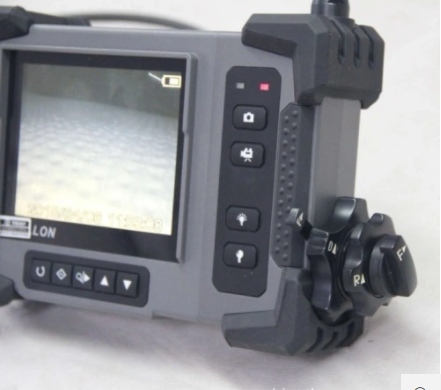

Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

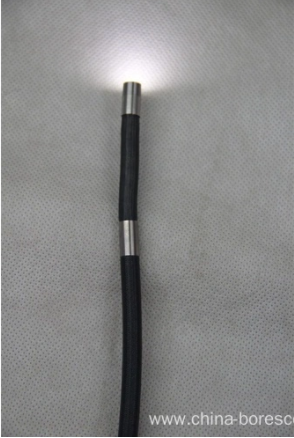

Probe Diameter:4.5mm

Camera Pixel:350,000
Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:8mm-80mm
Viewing Angle:90°
Bending Angle:≥120°

Type:Highlight LED

Brightness adjustment:0-5 levels


Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1Kg


Looking for ideal Engine Inspection Camera Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Engine Inspection Camera Sales are quality guaranteed. We are China Origin Factory of Engine Inspection Camera Wholesale. If you have any question, please feel free to contact us.
