Welding inspection Borescope.

This Welding inspection borescope is a multifunction Pipe Borescope,the handwheel of this pipe borescope is replaceable,so is the probes.One monitor for several different handwheels and you can choose the right one according to the size of your tubes.Saving the money for the users.

Model:D8800/D810 8.4mm Welding inspection borescope

Welding inspection borescope Features:

Removable handles:to choose the corresponding handle according to the diameter of the pipe you detected.
High brightness LCD.
Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance,the longest inserted cable can be up to 10 meters.

Welding inspection borescope Specification

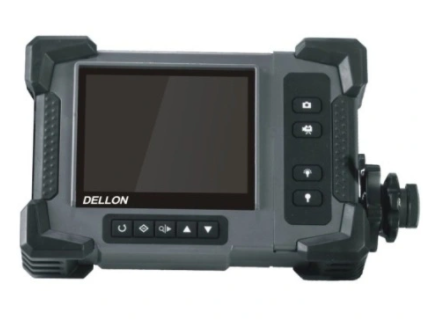

Operating Unit:
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

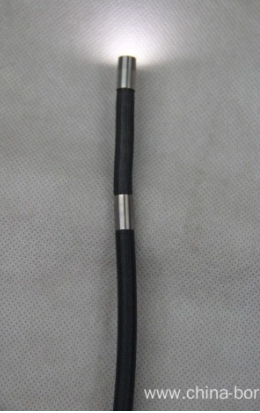

Probe:
Probe Diameter:8.4mm

Camera Pixel:700,000

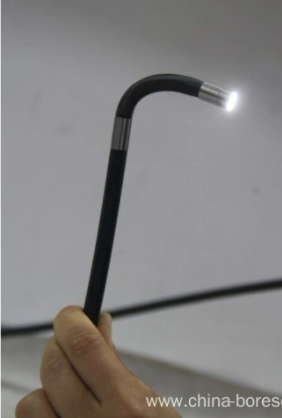

Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity/5mm-50mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1Kg

Dimensions:570*180*470(mm)
