Pipe industry videoscope
Model Number:
Place of Origin:
Keywords:Pipe industry videoscope,Pipe industry videoscope sales,Pipe industry videoscope wholesale,Pipe industry videoscope price
Next Previous

Product Details

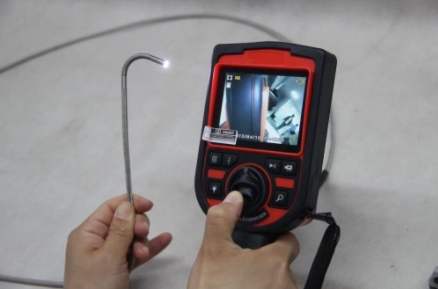

Pipe Industry Videoscope.

We are a manufacturer of the pipe industry videoscopes,and we have develop and explore this Pipe Industry Videoscope for more ten years.After 10 years of efforts,we have developed pipe industry Videoscope,Portable Videoscope,the magnetic crawler,flaw detector,3 D measuring instrument etc.,which can be applied to various industrial fields,such as aircraft,automotive,petrochemical,machinery,building and many other types of field applications.If you want to know more about this pipe industry videoscope sales price,please contact us directly.

We also accept the OEM and ODM order.

Model:G6150/G6300 Pipe industry videoscope.

Pipe industry videoscope Features:

Joystick-Controlled,360 degree Articulation.

High brightness LED,adjustment 0-5 levels.
Highly Durable and Flexible Insertion Tube.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

AA batteries and 5 V AC adapter

Stainless steel inserted cable,anticorrosive and wearable.

Pipe industry videoscope Specification

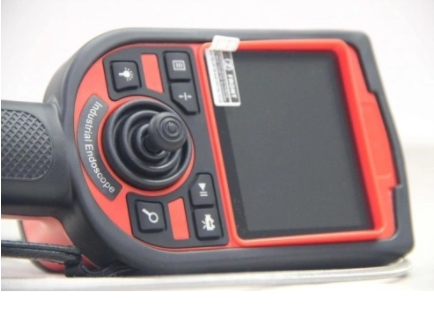

Operating Unit:
Display:3.5 inches TFT LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:AA Batteries or AC Adapter

Working Time:≥2 hours

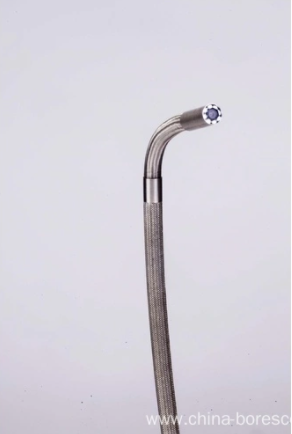

Probe Diameter:6.4 mm
Camera Pixel:350,000
Articulation:360 degree all-way
Tube Length:1.5 m-3 m

Material of Tube:Stainless steel
Depth of Field:15 mm-infinity
Viewing Angle:90°
Bending Angle:≥120°

Type:6 pcs white light LED

Brightness adjustment:0-5 levels

Others of Pipe industry videoscope:

Zoom:5 X
Memory:8G SD card
Waterproof Level:IP65/IP67(Optional)
System weight:590 g
