8mm camera industry videoscope
Model Number:
Place of Origin:
Added:2022-10-14
Views:
Telephone:86-0371-55693095
Keywords:8mm camera industry videoscope,8mm camera industry videoscope sales,8mm camera industry videoscope wholesale,8mm camera industry videoscope price
Next Previous

Product Details

8mm camera Industry Videoscope.

Model: D8150/D8300/D810 8mm camera industry Videoscope.

8mm camera industry videoscope Features:

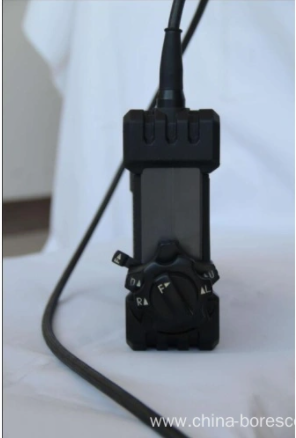

Removable handles:to choose the corresponding handle according to the diameter of the pipe you detected.
High brightness LCD.
Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance,the longest inserted cable can be up to 10 meters.

8mm camera industry videoscope Specification

8mm camera industry videoscope Operating Unit:
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

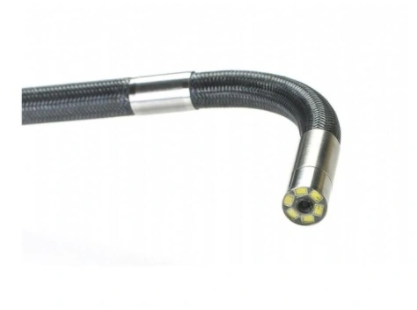

Probe:
Probe Diameter:8.4mm

Camera Pixel:700,000
Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity/5mm-50mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others of 8mm camera industry videoscope:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
Pipe Videoscope weight:2.1Kg

Dimensions:570*180*470(mm)
