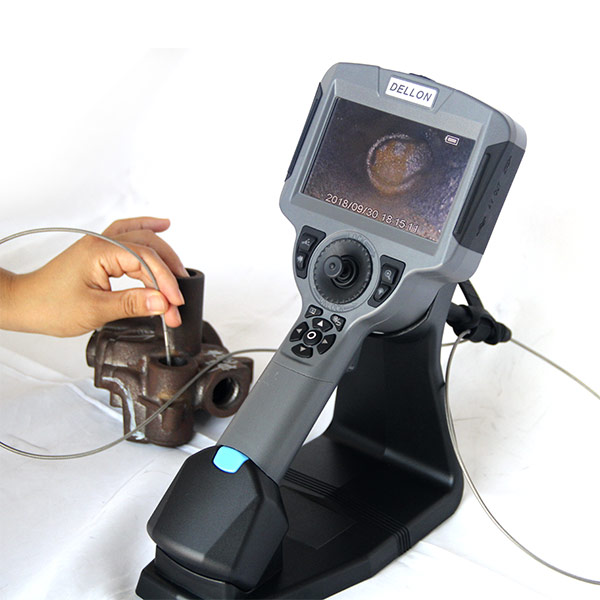

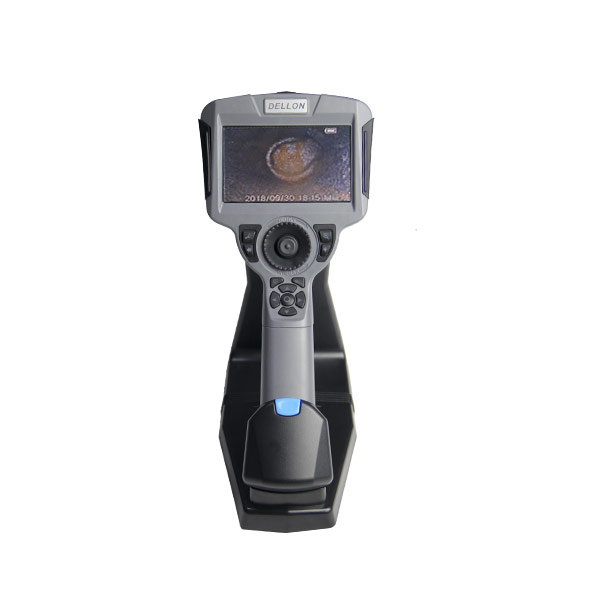

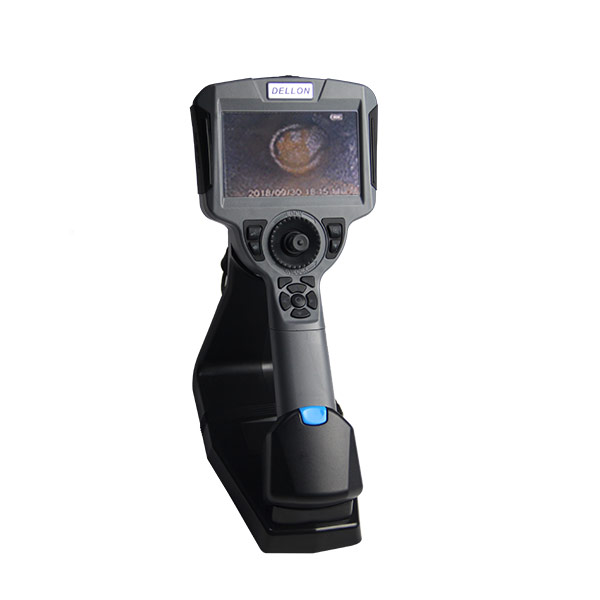

G Plus series industrial videoscope.
Model:G+2810/G+2815/G+4200/G+6200/G+6300.
G plus series industrial videoscope is a new NDT detector that integrated with optics, electronic technology, precision machinery and microphotography technology.
G Plus series industrial videoscope Camera Probe diameter:2.4mm,2.8mm,3.9mm,6.2mm non waterproof.6.4mm waterproof. 8.4mm.
G Plus series industrial videoscope Material:Stainless steel Stainless steel Titanium alloys.
Waterproof:IP64.IP64.IP64/IP67.IP64/IP67.IP64/IP67.
Image sensor:5CMOS,5CMOS.3.5CMOS,4.5CMOS,4.5CMOS.
Illumination Highlight LED.
G Plus series industrial videoscope Probe's length:10mm.15mm.
G Plus series industrial videoscope Pixels:300,000,1,000,000.
FOV:≥120°.
DOF:5-30mm.5-30mm.8-80mm.5-50mm/15-infinit.5-50mm/15-infinity.
FPS:30.
Temperature sensing:Yes.
Insertion cable Length:1.5m,2m,2m/3.5m/6m.
G Plus series industrial videoscope Material:Stainless steel,Stainless steel Tungsten.
Articulation:part Bending angle≥90°(2 way). 90°(2 way).＞90°(360°).
Bending part operation Manual joystick. Probe interchangeability.
Controller LCD size:5 inches.
Material of the controller ABS.
G Plus series industrial videoscope Resolution:1200*720.
Contrast:900:1
G Plus series industrial videoscope Brightness:600 CD/m2.
G Plus series industrial videoscope supply Battery:3.7V/6000MAH.
G Plus series industrial videoscope Working time:More than 4 hours.
G Plus series industrial videoscope Charging time:5 hours.
AC input:AC 100-240V 50/60Hz 0.35A. AC output:5V 2A.
Brightness:adjustment Manual 5 levels. Auxiliary light life 100,000 hours.
Lighting type:High brightness LED. System memory. Audio Built-in mic. speaker Wifi video.
Photo/video:function Real time 5-level and 3 times.
magnification(Capture)Operation system Multitasking operating system menu drive.
and key operation:Real time 5-level and 3 times.
magnification(Video)Software update Factory will provide the latest procedure. and this updating will be finished by the users Playback.
function Video:Playback/Pause,Input/output,Video output NTSC/PAL output,
Pictures:Real time 5-level and 3 times magnification,USB nterface.
operation Photo/Video delete Storage. Output interface HDMI/AV.
Date/time setting.
G Plus series industrial videoscope Storage media:Micro SD(32G).
14 languages,such as Chinese,English.
Photo format:JPEG. SD card format Operation.
temperature:-10°C-50°C
