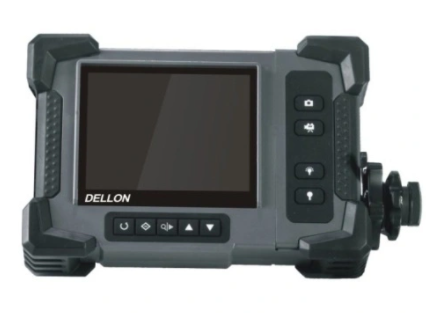

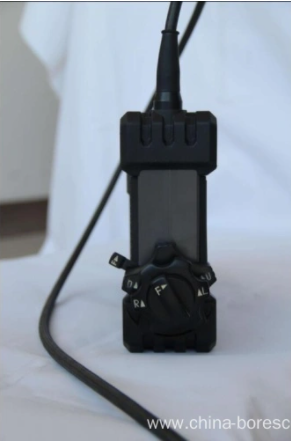

Pipe Videoscope.

Pipe videoscope is New NDT flaw detector,the detector combined with optical,electronic technology,precision machinery and micro imaging technology.Using high brightness color LCD,ultra small CMOS camera,video signal after amplification could clearly display the test results on 5.7inches color LCD.High definition,high reliability,high stability proved its excellent on-site detection ability.And the Pipe Videoscope sales price is competitive in the market,welcome to contact us for more information about Pipe videoscope.

Pipe videoscope Specification

Operating Unit:
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

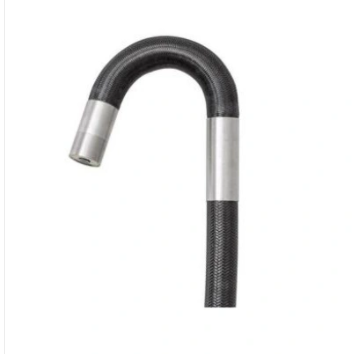

Probe:
Probe Diameter:6.2mm

Camera Pixel:700,000
Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1Kg

Dimensions:570*180*470(mm)
