Pressure vessel inspection videoscopes
Model Number:
Place of Origin:
Added:2022-10-14
Views:
Telephone:86-0371-55693095
Keywords:Pressure vessel inspection videoscopes,Pressure vessel inspection videoscopes sales,Pressure vessel inspection videoscopes wholesale
Next Previous

Product Details

Pressure vessel inspection videoscopes.

Model: D4150/ D4300 All Way Articulating4.5mm Pressure vessel inspection

Pressure vessel inspection Features:

High resolution camera,360 ° Articulation.
Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.

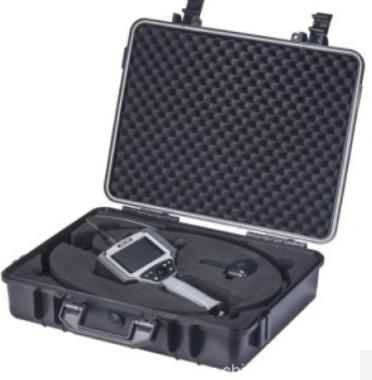

True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance

Pressure vessel inspection Specification

Operating Unit

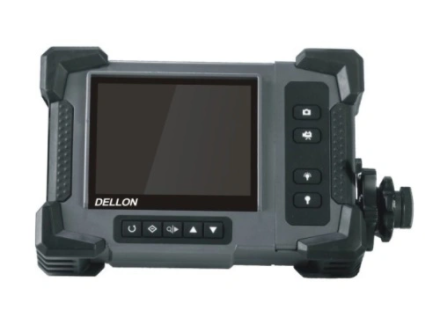

Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

Probe:
Probe Diameter:4.5mm

Camera Pixel:350,000

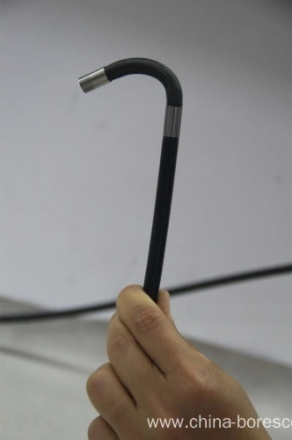

Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:8mm-80mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:

Type:Highlight LED

Brightness adjustment:0-5 levels

Others of Pressure vessel inspection:
