Welding inspection camera
Model Number:
Place of Origin:
Keywords:Welding inspection camera,Welding inspection camera sales,Welding inspection camera wholesale
Next Previous

Product Details

Welding Inspection Camera.

Inspection camera has been widely used in many industries in today's society because of their flexible operation,clear image and non-destructive testing,which also includes the machinery manufacturing and casting industries.And people always use this inspection camera to check the jam,welding,crack of the tubes etc.More information about welding inspection camera sales please contact us for it.

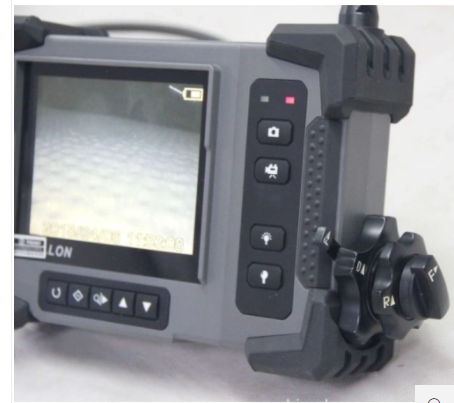

Model: D8800/D810 All Way Articulating 8.4mm Videoscopes Welding inspection camera

Welding inspection camera Features:

Removable handles:to choose the corresponding handle according to the diameter of the pipe you detected.
High brightness LCD.
Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance,the longest inserted cable can be up to 10 meters.

Welding inspection camera Specification

Operating Unit:
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

Probe Diameter:8.4mm

Camera Pixel:700,000
Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity/5mm-50mm
Viewing Angle:90°
Bending Angle:≥120°

Type:Highlight LED

Brightness adjustment:0-5 levels


Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1Kg


Looking for ideal Welding Inspection Camera Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Welding Inspection Camera Sales are quality guaranteed. We are China Origin Factory of Welding Inspection Camera Wholesale. If you have any question, please feel free to contact us.
