Welding inspection videoscope
Model Number:
Place of Origin:
Added:2022-10-14
Views:
Telephone:86-0371-55693095
Keywords:Welding inspection videoscope,Welding inspection videoscope manufacturers,Welding inspection videoscope sales,Welding inspection videoscope wholesale
Next Previous

Product Details

Welding inspection Videoscope.

We developed and produced all kinds of Pipe Videoscope,which are widely used in Power,Petrochemical,Aviation,Police Counter-terrorism,Nuclear industry,Customs,Military,Shipbuilding,Automobile and Locomotive manufacturing,Heavy industry equipment etc.We do not only provide the best performance welding inspection videoscope but also offer the best after-sales service,immediate repairing ( 1 week to 3 weeks ),12 months for warranty freely.And our goals are customers are the first,to solve problems for our customers is our duty.About the welding inspection videoscope price,you can contact us for it.

Welding inspection videoscope Features:

Replaceable lithium battery,to keep the system working for long time.

Tungsten braid cable,corrosion resistance.

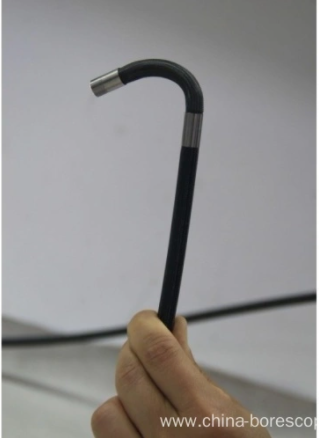

Electrical Joystick-Controlled,360 ° Articulation.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

A carrying belt making it easier for you to bring the system up to a high position.

Welding inspection videoscope Specification

Operating Unit:
Display:4.3 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:5V Lithium battery or AC Adapter

Working Time:≥4 hours

Probe:
Probe Diameter:6.2mm

Camera Pixel:700,000
Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/ IP67(Optional)
Welding inspection videoscope weight:900g

Dimensions:570*180*470(mm)
