4mm camera Portable videoscope
Model Number:
Place of Origin:
Keywords:4mm camera Portable videoscope,4mm camera Portable videoscope sales,4mm camera Portable videoscope wholesale
Next Previous

Product Details

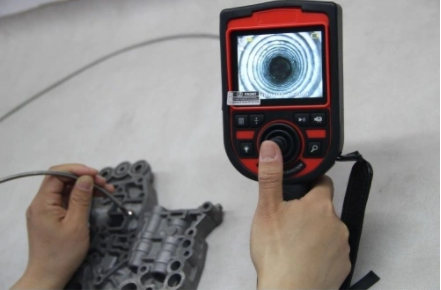

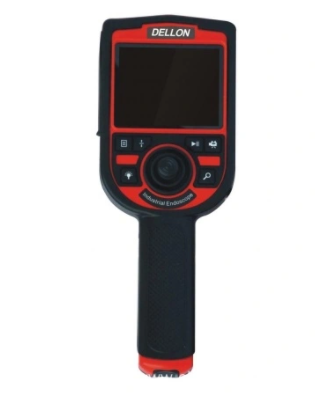

4mm Camera Portable Videoscope.

Dellon is pleased to introduce the G4150/ G4300 economy series all way articulating 4.5mm Portable Videoscope.This 4mm camera Portable Videoscope is an inspecting device that of an integration of optics,electronic technique,precision machinery and mico-photograph technique,and features camera chip in the tip technology,built in LED lightsource,lightweight and portable design,3.5"LCD screen,picture taking and video recording.This joystick articulating Portable Videoscope has different model,diameter of the probe is4.5mm and 6.4mm,insterted cable from 1.2m to 3m,we also can make according to your needs.With better image quality and proper price this videoscope is very favored by customers.Also the application of the system is very wide, such as aircraft,automotive,petrochemical,machinery,building and many other types of field applications.

All in all it is an economy, portable,stable system with high cost performance,please do not hesitate to contact us if this unit fit your needs.

We also accept the OEM and ODM order.

Model:G4150/G4300 All Way Articulating 4mm camera Portable videoscope

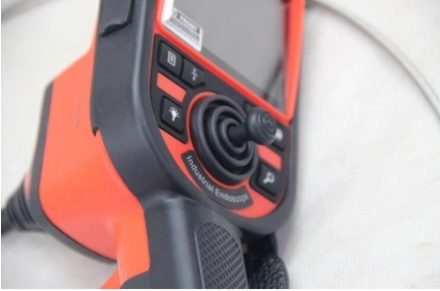

Joystick-Controlled,360 degree Articulation.

Hight brightness LED,adjustment 0-5 levels.
Highly Durable and Flexible Insertion Tube.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

AA batteries and 5V AC adapter

Stainless steel inserted cable,anticorrosive and wearable.

4mm camera Portable videoscope Specification

Operating Unit:
Display:3.5 inches TFT LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:AA Batteries or AC Adapter

Working Time:≥2 hours

Probe Diameter:4.5 mm
Camera Pixel:350,000
Articulation:360 degree all-way
Tube Length:1.5m-3m

Material of Tube:Stainless steel
Depth of Field:15mm-infinity
Viewing Angle:90°
Bending Angle:≥120°

Type:6 pcs white light LED

Brightness adjustment:0-5 levels


Memory:8GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:590g
