Boiler tube inspection borescope
Model Number:
Place of Origin:
Added:2022-10-14
Views:
Telephone:86-0371-55693095
Keywords:Boiler tube inspection borescope,Boiler tube inspection borescope sales,Boiler tube inspection borescope wholesale,Boiler tube inspection borescope price
Next Previous

Product Details

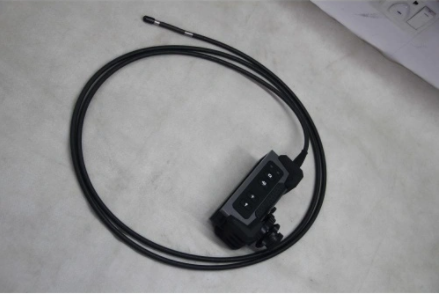

Boiler tube inspection Borescope.

Model:D8600/D8800/D810 Boiler tube inspection borescope

Boiler tube inspection borescope Features:

Removable handles:to choose the corresponding handle according to the diameter of the pipe you detected.
High brightness LCD.
Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance,the longest inserted cable can be up to 10 meters.

Boiler tube inspection borescope Specification

Operating Unit:
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

Probe:
Probe Diameter:8.4mm

Camera Pixel:700,000

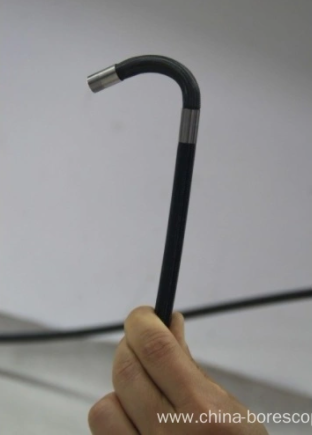

Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity/5mm-50mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
Pipe Borescope weight:2.1Kg

Dimensions:570*180*470(mm)
