Condenser inspection borescope
Model Number:
Place of Origin:
Added:2022-10-14
Views:
Telephone:86-0371-55693095
Keywords:Condenser inspection borescope,Condenser inspection borescope sales,Condenser inspection borescope wholesale,Condenser inspection borescope price
Next Previous

Product Details

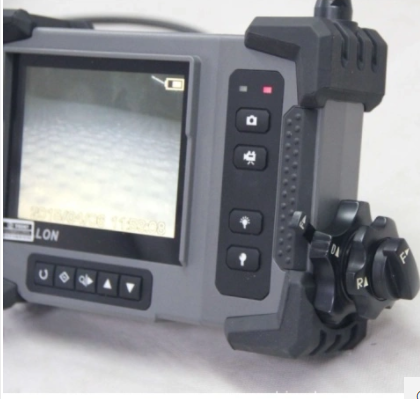

Condenser inspection Borescope.

Model: D4150/D4300 Condenser inspection borescope.

Condenser inspection borescope Features:

High resolution camera,360 ° Articulation.
Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance

Condenser inspection borescope Specification

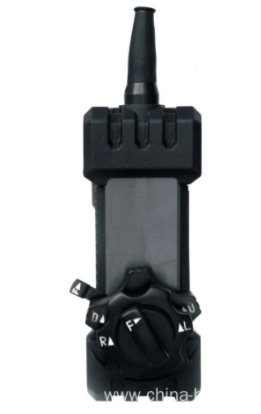

Operating Unit
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

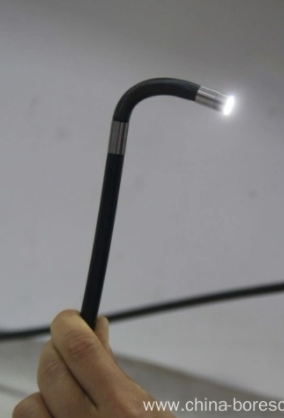

Probe:
Probe Diameter:4.5mm

Camera Pixel:350,000
Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:8mm-80mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others of Pipe Borescope:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1Kg

Dimensions:570*180*470(mm)
