Handheld industrial borescope
Model Number:
Place of Origin:
Added:2022-10-14
Views:
Telephone:86-0371-55693095
Keywords:Handheld industrial borescope,Handheld industrial borescope manufacturers,Handheld industrial borescope sales,Handheld industrial borescope wholesale
Next Previous

Product Details

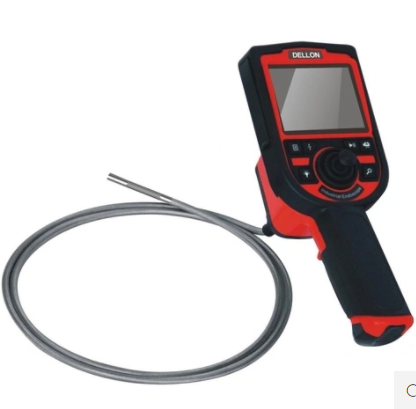

Handheld industrial Borescope.

With high-Intensity LED Illumination and sensitiveness CCD/CMOS image sensor,you can get a clearly picture when the probe of pipe Industrial Borescope was insterted into the inspected tube.Handheld design makes it easier to operate.Please contact us for the Handheld Industrial Borescope sales price,welcome to join us.

Model:G4150/ G4300 All Way Articulating4.5mm Handheld industrial borescope

Handheld industrial borescope Features:

Portable design,easy using and carrying

Joystick-Controlled,360 degreeArticulation.

Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.

High sensitiveness CCD/CMOS image sensor.

AA batteries,continually working more than 2 hours.

Handheld industrial borescope Specification

Operating Unit:

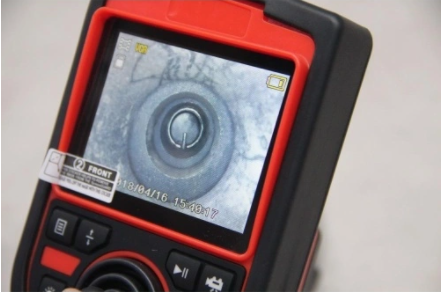

Display:3.5 inches TFT LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:AA Batteries or AC Adapter

Working Time:More than 2 hours

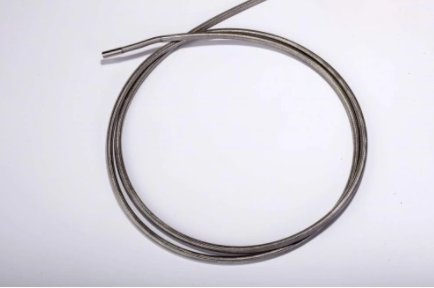

Probe:
Probe Diameter:4.5 mm
Camera Pixel:350,000
Articulation:360 degree all-way
Tube Length:1.5m-3m

Material of Tube:Stainless steel
Depth of Field:8mm-80mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:6 pcs white light LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:8GSD card
Waterproof Level:IP65
System weight:590g

Working temperature:-10℃-50℃

Dimensions:470*360*150(mm)
